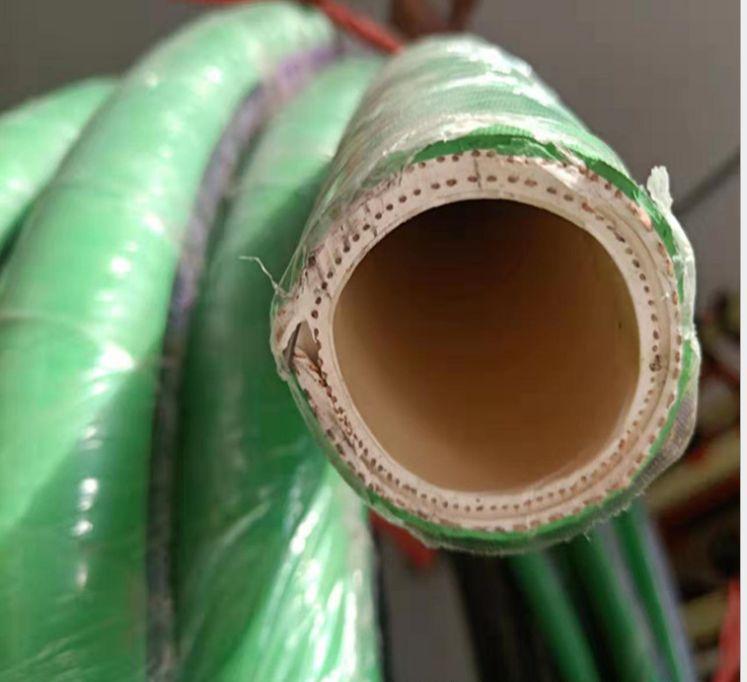

UHMWPE Chemical Suction Hose
UHMWPE chemical suction hose is engineered for demanding transfer of aggressive chemicals, acids, caustics, and solvents under full vacuum conditions. The seamless ultra-high molecular weight polyethylene tube provides exceptional chemical resistance, ultra-low friction, and superior abrasion resistance. Reinforced with multiple textile cord plies and a rigid steel wire helix, this hose withstands full vacuum (29 in Hg) without collapse, while handling working pressures up to 150 PSI.
Product description
Product Details – UHMWPE Chemical Suction Hose
Application
Specifically designed for aggressive chemical suction and transfer where full vacuum capability is required. Ideal for unloading acids, alkalis, solvents, and corrosive liquids from tank trucks, rail cars, ships, and storage tanks. Suitable for chemical plants, industrial processing, and hazardous material handling.
Construction
• Tube: Seamless, static-conductive UHMWPE (ultra-high molecular weight polyethylene) – extremely smooth, non-adhesive, and resistant to over 95% of industrial chemicals including strong acids, bases, and organic solvents.
• Reinforcement: High-tensile synthetic textile cord plies + a rugged galvanized steel wire helix (spiral wound) for maximum vacuum resistance, kink prevention, and crush protection.
• Cover: Black, EPDM or neoprene synthetic rubber – abrasion-, ozone-, UV-, oil-, and weather-resistant. Optional conductive or flame-retardant cover available.
Performance
• Working Pressure: Up to 150 PSI (10.3 bar) depending on size
• Burst Pressure: 4 x working pressure (600 PSI)
• Vacuum Rating: Full vacuum (29 in Hg) – hose maintains round shape under heavy suction
• Temperature Range: -40°C to +80°C (-40°F to +176°F)
Available Sizes
1” to 8” (25 mm – 200 mm) ID, standard lengths 20 m / 30 m / 60 ft. Custom lengths available.
Standards
Meets or exceeds EN 13765 (Type B or C), ISO 1823, and BS 5849 specifications for chemical suction and discharge hoses.
Features
• Full vacuum capability – steel helix prevents collapse during intense suction of viscous or volatile chemicals
• Superior chemical compatibility – handles acids (sulfuric, hydrochloric, nitric), caustics, solvents, and fuels without degradation
• Ultra-smooth UHMWPE bore – reduces pressure drop, increases flow rate, and prevents residue buildup
• Extreme abrasion resistance – ideal for abrasive slurries and crystalline chemicals
• Lightweight construction – easier to maneuver than all-rubber chemical hoses
• Static conductive – ensures safe transfer of flammable liquids (≤10⁶ Ω)
• Non-stick surface – quick and easy cleaning between chemical batches
