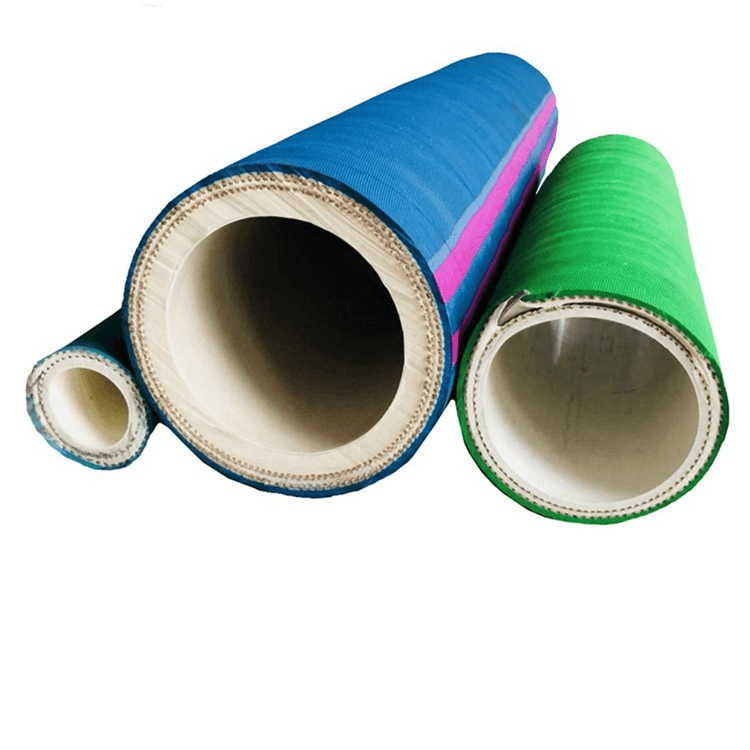

Uhmwpe Chemical Discharge Hose

Application
Designed for suction and discharge of a wide range of corrosive chemicals, acids, alkalis, solvents, and petroleum products. Ideal for chemical plants, tank truck loading/unloading, marine terminals, industrial processing, and waste treatment facilities.

Construction

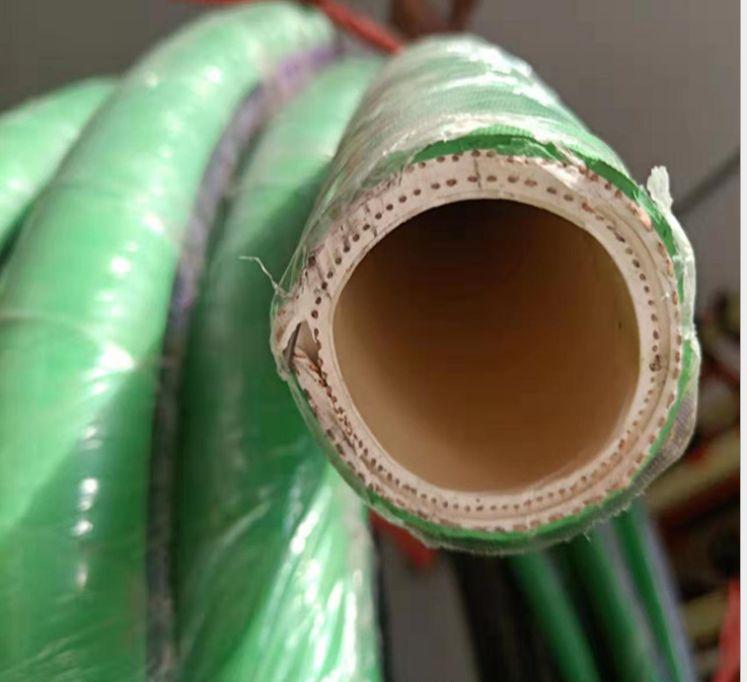

• Tube: Seamless, static-conductive UHMWPE (ultra-high molecular weight polyethylene) – extremely smooth, non-stick surface, excellent chemical resistance to over 95% of industrial chemicals including strong acids and caustics.
• Reinforcement: Multiple high-tensile synthetic textile cord plies + inner and outer galvanized steel wire helix for full vacuum, crush resistance, and kink resistance.
• Cover: Black, EPDM or neoprene synthetic rubber – abrasion-, ozone-, UV-, oil-, and weather-resistant. Optional conductive cover available.

Performance

• Working Pressure: 150 PSI to 300 PSI (10 to 20 bar) depending on size
• Burst Pressure: 4 x working pressure
• Vacuum Rating: Full vacuum (29 in Hg)
• Temperature Range: -40°C to +80°C (-40°F to +176°F)

Available Sizes
1” to 8” (25 mm – 200 mm) ID, standard lengths 20 m / 30 m / 60 ft.

Standards
Meets or exceeds EN 13765, ISO 1823, and API 1529 specifications for chemical transfer hoses.

Features

• Exceptional chemical compatibility – suitable for strong acids, bases, solvents, and hydrocarbons
• Ultra-smooth UHMWPE tube reduces friction loss and allows higher flow rates
• Extremely abrasion resistant – tube outlasts conventional rubber hoses in abrasive slurries
• Non-stick surface – easy cleaning and minimal residual buildup
• Static conductive tube (≤10⁶ Ω) for safe transfer of flammable liquids
• Lightweight compared to rubber chemical hoses – easier handling
• Steel helix provides full vacuum capability and crush resistance
